A compact angle stop is an L-shaped valve installed where the supply line reaches a fixture. You will find these valves under sinks, behind toilets, and at many appliance connections. When a Plumbing Angle Stop works properly, it allows one fixture to be shut off without interrupting water to the whole home. This makes repairs and replacements faster and less disruptive.

Angle Stops Plumbing
In many homes, angle stops measure about 3–6 inches and redirect water at a 90-degree angle toward the fixture. Modern installations favor quarter-turn ball-style Angle Stop Valve designs. They are quicker to operate and commonly provide longer service life. If an angle stop corrodes, leaks, or becomes stiff, replacing it helps prevent water damage and simplifies future maintenance.

Key Takeaways

• Plumbing Angle Stops let you shut off water to one fixture without touching the house main.
• Angle Stops Plumbing are usually found beneath sinks, behind toilets, and near fixtures where quick access matters.
• Most Angle Stop Valve units are compact, often 3–6 inches tall, and redirect water at a right angle.
• Quarter-turn designs are now preferred for reliability and faster shutoff.
• Any valve that sticks should be replaced before it causes larger water problems.

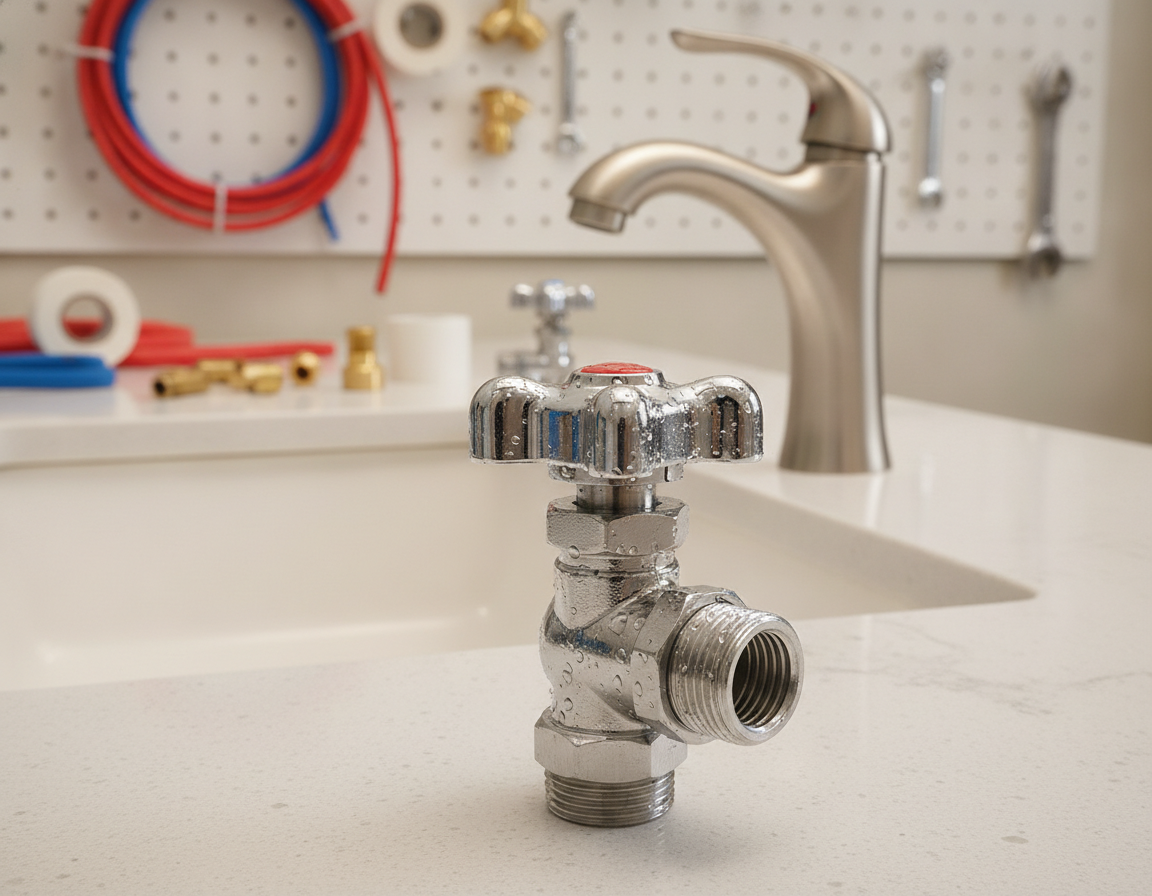

What Is An Angle Stop And Why It Matters

The angle stop is a compact shutoff valve installed where a water line meets a fixture. It controls water to a single fixture so repairs, upgrades, or replacements can happen without closing the whole-house main. Homeowners, plumbers, and inspectors depend on these valves to keep maintenance localized.

Angle Stop Definition Explained

An angle stop is a 90-degree valve placed at the fixture supply. It comes in different designs, including Angle Stop Valves with multi-turn stems or quarter-turn ball internals. A Plumbing Angle Stop is designed to fit neatly in tight spots such as under-sink cabinets and behind toilets.

Where Home Angle Stops Are Usually Installed

Plumbing Angle Stops are most often installed below bathroom vanities and kitchen sinks. They are usually positioned near the rear of the cabinet where the water line comes through. Toilet stops mount on the wall behind the tank. You will also see angle stops at appliance connections such as dishwashers, ice makers, washing machines, and near some water heaters for cold-water shutoff.

Practical Benefits For Homeowners

One main benefit of an Angle Valve For Sink is isolation. With a working Plumbing Angle Stop, you can shut off a single sink, toilet, or appliance line while fixing a leak or replacing a fixture. This keeps small leaks from turning into major water damage and limits disruption during repairs.

Another advantage is convenience. Angle Stops Plumbing are compact, helping reduce repair time and inconvenience. Periodic exercising of the valve keeps it operable. Replacing old multi-turn stops with quarter-turn Angle Stop Valve models can make emergency shutoff faster.

Angle Stop Versus Angle Seat Valve

Residential angle stops are made for fixture-level potable water service. They are suited to sinks, toilets, and everyday household appliances. The industrial Angle Seat Valve is different. It handles high-pressure, high-temperature, or corrosive media found in steam, chemical, and HVAC systems. Angle seat valves use metal seats and pistons for durability in demanding environments, while an Angle Stop is a simple residential fixture shutoff.

Types Of Angle Stops And How To Choose One

Selecting the correct angle stop involves comparing materials, operating style, connection type, and extra features. This guide compares common options to help homeowners and plumbers choose a durable, code-compliant fixture shutoff.

Common Valve Materials

Brass is widely used as the standard material for Angle Stops. Because it resists corrosion and may last 10–20 years, brass is a strong choice for Quarter-Turn Angle Stops. Stainless steel bodies are best for humid basements, coastal areas, and outdoor hose bibs to prevent rust. Plastic-bodied stops cost less but are less durable and may degrade in hot-water loops. Always choose a Lead-Free Angle Stop for potable water in the United States to meet federal and state standards.

How Angle Stops Operate

Quarter-turn valves use a ball or disc and open with a 90-degree turn. They provide quick shutoff, low torque, and resistance to mineral buildup, making them a top choice for frequent use and emergencies. Multi-turn valves rely on a rising stem and need several turns to open or close fully. They provide finer flow control but are more likely to leak or stick in older homes.

Angle Stop Connection Types

Compression Angle Stop fittings use a nut and ferrule, making them common for copper and CPVC stub-outs. They are popular in remodels because they can be installed without soldering or open flame. Sweat Angle Stop joints are soldered for a slim, permanent seal and work well in tight spaces where a torch is acceptable. FIP-threaded valves screw onto male adapters and require PTFE tape or pipe sealant. Push-Fit Angle Stop products, including SharkBite-compatible models, slip onto copper, CPVC, or PEX for tool-free installs. They are useful for DIY work or cramped areas, while Compression Angle Stop options remain common where future rework is expected.

Useful Special Features

Some Angle Stop Valve designs include a built-in Water Hammer Arrestor Angle Stop. They use an air chamber or piston to absorb pressure shock from quick-closing fixtures and reduce pipe banging. In humid or coastal locations, a Coastal Angle Stop with corrosion-resistant finishes, stainless internals, and anti-seize stems can improve service life. A Lead-Free Angle Stop marking on the body helps confirm the valve is intended for potable-water use. Select a model that matches your pipe type and service expectations to avoid premature failure.

Understanding Plumbing Angle Stops

Plumbing angle stops manage fixture water flow using a compact right-angle layout. Choosing the right size and style affects performance, ease of service, and compliance. The sections below explain valve markings, typical home locations, lead-free requirements, and modern installation trends.

Common Sizes And Reading Valve Markings

In most homes, the inlet side is commonly 1/2 inch nominal, while the outlet to the fixture is often 3/8 inch compression. Valve labels may show a format like 1/2 x 3/8 or 1/2” MIP x 3/8” OD. Those markings show which side connects to the supply pipe and which side connects to the fixture hose. Some valves are marked 3/8 COMP to indicate a compression outlet. Make sure the inlet matches your supply pipe, whether it is 1/2 FIP, 1/2 MIP, or 1/2 sweat.

Typical Placement In The Home

Angle stops are commonly found under kitchen and bathroom sinks and behind toilets. Dedicated stops may also serve dishwashers, ice makers, washing machines, water heaters, and other appliances. Under-sink valves are commonly located at the rear of cabinets, while toilet stops are generally visible near the wall behind the tank.

Lead-Free Code Notes For Drinking Water

In the U.S., valves for drinking-water lines must meet lead-free standards for wetted surfaces. Choose a Lead-Free Angle Stop that has clear markings, documentation, or certification details. Contractors must follow local codes and provide test certifications and warranties to support compliance.

Modern Trends And Recommended Standards

Modern Angle Stops often use quarter-turn ball designs. A Quarter-Turn Angle Stop provides fast shutoff in emergencies and, when made from brass, can offer long service life. Experts often recommend a brass 1/2 x 3/8 angle stop for sinks and toilets for easier stocking and maintenance. New installations increasingly include models with arrestors, lead-free markings, and other potable-water protection features.

Quick Checklist For Choosing Angle Stops

• Confirm Valve Markings for inlet type and outlet size before purchase.
• Match the Angle Valve For Sink or toilet to supply hose fittings and tank threads.
• Specify a Lead-Free Angle Stop when the line serves potable water.
• For many homes, standardizing on Quarter-Turn Angle Stop 1/2 x 3/8 valves can simplify maintenance and improve reliability.

Installing And Replacing Angle Stops: Tools, Steps, And Best Practices

When tackling a plumbing angle stop, it is important to know when to shut the main water supply. Only shut the main if the existing stop will not close fully, is damaged, or is frozen. For most replacements, you can isolate the line using the valve under the sink. Always open a downstream faucet to relieve pressure and keep towels and a bucket ready.

Before starting, gather all needed tools and supplies. You will need an adjustable wrench, backup wrench, tube cutter, and deburring tool. Emery cloth, PTFE tape, a marker, and a flashlight are also helpful for clean preparation and inspection. For push-fit installs, bring the manufacturer’s push-fit angle stop, a PEX stiffener, and spare ferrules and nuts for compression work. Penetrating oil and a heat shield help with stubborn fittings and sweat connections.

Checklist:

• Adjustable wrench and backup wrench
• Tube cutter and deburring tool
• PTFE tape and marker
• Push-fit angle stop and PEX stiffener
• Spare ferrules, nuts, penetrating oil, and towels

Each connection type requires its own installation method. For a compression connection, slide the nut and ferrule onto the pipe and seat the valve squarely against the pipe shoulder. Hand-tighten the nut and finish with a 1/4–1/2 turn using a wrench. Use a backup wrench on the valve body or outlet so the stub-out does not twist.

For push-fit installation, cut the pipe square and deburr it. Mark the insertion depth and push the valve straight on to the depth mark. After installation, give the fitting a light tug to confirm it has locked in place. Push-fit angle stop fittings work on copper, CPVC, and PEX; use a stiffener for PEX where required.

Sweat angle stop connections need careful preparation and heat control. Remove or protect seals, clean and flux the pipe and valve cup, heat evenly, and apply solder properly. After cooling, wipe the joint to remove residue. Use a heat shield or remove seals to prevent damage during sweating.

For threaded connections such as a FIP angle stop, wrap male threads with PTFE tape using three to four wraps and start the valve by hand to avoid cross-threading. Tighten the valve until it is sealed and aligned, connect the supply line, and test with water slowly.

Test the work by turning water on slowly and watching the joints. Open the angle stop and fixture in stages rather than all at once. Wipe joints to spot tiny weepers. Operate the valve, let pressure stabilize, and inspect again for slow leaks.

Several common mistakes can cause leaks or early valve failure. Over-tightening compression nuts can deform ferrules and cause leaks. Never reuse a damaged ferrule; cut back the pipe and install a new ferrule when needed. Do not solder near heat-sensitive seals unless they are protected or removed. Do not twist while inserting push-fit fittings, and always follow manufacturer depth marks.

Typical problems include frozen or leaking stops that require main shutoff, incorrectly applied PTFE tape on threaded joints, and outlet nuts tightened without a backup wrench. Keeping spare parts available and following proper tightening guidance helps reduce repeat repairs.

Angle Stop Problems And Quick Repairs

Small leaks, stuck handles, and stiff valves are common angle stop problems for homeowners. A quick assessment shows whether a simple fix is enough or a full replacement is needed for long-term reliability.

Stem Or Handle Leaks

In older multi-turn valves, seepage at the stem usually starts with a loose packing nut. Tightening the nut about 1/8 turn with an adjustable wrench can often solve the issue. If the leak continues, the internal washer or O-ring may be worn and replacement may be required.

Stuck Valves

Stuck angle stops often result from Mineral Buildup or rust. Applying a penetrating product such as WD-40 for about ten minutes may help. Gently rocking the handle back and forth may free the valve. If it remains stuck or the handle is brittle, replace the stop to avoid a flood.

Weeping Compression Joints

A persistent leak from a compression joint usually indicates a misaligned ferrule or damaged pipe end. To fix it, loosen the nut, reseat the ferrule, and clean the pipe with emery cloth. If the ferrule is damaged or worn, cut back the pipe, fit a new ferrule, and tighten carefully without over-compressing it.

When Replacement Makes Sense

If a home has repeated leaks, frozen handles, visible corrosion, or valves older than about ten years, modern angle stops are worth considering. A Quarter-Turn Upgrade to a ball-type stop improves shutoff speed, resists Mineral Buildup, and increases emergency reliability.

Simple Troubleshooting Checklist

• Tighten the packing nut slightly for stem drips.
• Use Penetrating Oil and gentle motion for stuck valves.
• Reseat the ferrule or cut back the pipe for compression leaks.
• When valves repeatedly freeze, leak, or stick, upgrade to quarter-turn stops.

Turning angle stops occasionally and inspecting for corrosion can reveal problems before they become emergencies. Fixing leaks, stuck valves, and weeping joints promptly helps prevent bigger repairs and supports Angle Stop Reliability.

Summary

The Plumbing Angle Stops Guide highlights the importance of these small but critical components. They let homeowners shut off one fixture without disrupting water to the whole house. Choosing the right material, operation style, and connection type makes repairs easier. It also reduces the risk of water damage during upgrades.

For best performance, the industry often recommends lead-free, quarter-turn brass 1/2 x 3/8 stops. Integrated arrestors are also useful where water hammer is a concern. Homeowners should test valves regularly and replace faulty Plumbing Angle Stops. Parts may cost $6 to $60, while professional installation can range from $75 to $200 depending on location and complexity.

If installation is uncertain, consulting a licensed plumber is wise. A qualified plumber can check code requirements, complete the work properly, and often provide warranty-backed service. That approach helps protect fixtures, reduce risk, and make future maintenance easier. It also follows best practices in Angle Stops Plumbing for modern residential installations.
