Female compression fittings offer a clean and efficient approach for connecting pipes and tubing. They eliminate the need for solder or welded joints. This article explores the function of female compression fittings, showing how the compression nut and ferrule ensure a tight seal. It also points out their importance in both plumbing and HVAC applications.

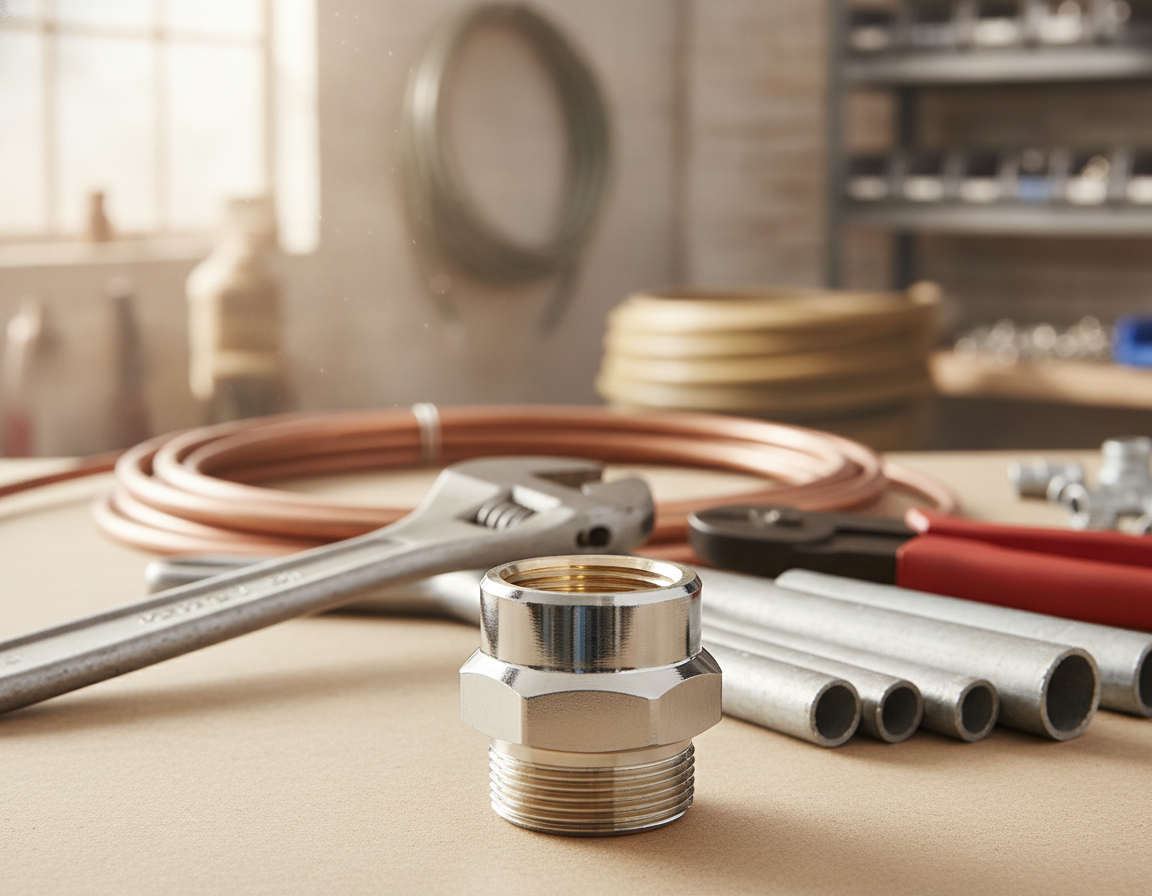

Female Compression Fitting
Selecting high-quality pipe fittings can significantly reduce energy losses. This, in turn, prevents refrigerant or water leaks, which can create risks for the environment. HVAC systems, which include components like compressors, condensers, expansion valves, and evaporators, need robust connections. Choosing the appropriate female compression fitting and compatible materials—such as brass, copper, stainless steel, PVC, or PEX—is critical for long-term system performance.
In plumbing, PEX or PVC with compression fittings are favored for their ease of service and low heat exposure. For different demands, refrigeration lines require fittings that can resist thermal fatigue and keep a seal across a wide temperature range. InstallationPartsSupply.com and its product lines help meet these needs, supplying common sizes and parts such as ferrules and compression nuts.
Key Takeaways
- Female compression fittings uses a compression-nut and ferrule assembly to seal without soldering.
- Using the proper fitting material—brass, copper, stainless, PVC, or PEX—limits corrosion and failure.
- Proper fittings reduce energy loss and stop refrigerant or water leaks in HVAC and plumbing systems.
- Fitting guide materials and suppliers like InstallationPartsSupply.com support part selection.
- Review ferrule condition and tighten per manufacturer torque to ensure a long-lasting seal.
Compression Fittings And HVAC Vs Plumbing Applications Explained
Compression fittings fasten pipes and tubing without solder or welding. They are ideal for copper, PEX, PVC, and stainless lines where heat or flame is best avoided. Many tradespeople buy parts from Installation Parts Supply to improve consistent quality and fit.
How A Compression Fitting Works
A compression fitting works with a nut and a ferrule olive pressed against the pipe by the fitting body. The tightening action compresses the brass ferrule or sleeve, which bites the outer pipe and forms a seal. This mechanical action demonstrates the common question of what is a compression fitting by showing how mechanical compression creates a leak-tight joint.
HVAC Vs Plumbing Fittings: Key Differences
HVAC fittings must tolerate refrigerants, wider temperature swings, and thermal fatigue. Plumbing fittings focus on potable water, wastewater, and pressure from building systems. In the HVAC-versus-plumbing comparison, selection depends on media, service temperature, and pressure ratings.
Systems such as split systems, VRF, and rooftop units often use copper fittings and brazed joints for refrigerant lines. Plumbing applications often favor PEX compression and PVC for drains, where solvent welds or crimp systems are common.
Common Materials Used In Compression Fittings
Copper fittings are valued for excellent thermal conductivity and corrosion resistance. Brass components, including brass ferrules, help resist wear and are common in many compression fittings. Stainless steel is often chosen for corrosive or high-pressure environments.
PEX compression fittings are commonly used for domestic water lines because it manages freeze-thaw cycles and is flexible. PVC continues to be a low-cost option for drains and certain chilled-water circuits when pressure is low.
| Material Type | Common Use | Benefits | Restrictions |
|---|---|---|---|
| Copper Fittings | Cooling lines and drinking-water systems | Conductive, durable, solderable | Costlier with some risk of physical damage |
| Brass Parts | Compression fittings, nuts, and ferrules | Good machinability, corrosion resistance | Possible galvanic issues with dissimilar metals |
| Stainless Steel | High-pressure or corrosive systems | Strong, durable, and resistant to corrosion | Higher cost and more difficult machining |
| PEX | Residential hot and cold water | Freeze-resistant with flexible handling | Needs compatible PEX compression hardware |
| PVC | Drainage and low-pressure cooling circuits | Economical with straightforward installation | Limited in hot or pressurized applications |
Fitting Selection, Energy Efficiency, And Leak Prevention
Matching the fitting correctly limits leak risk and maintains system pressure. Within refrigeration systems, a poor joint can release refrigerant and lower efficiency. Tight seals and matched materials cut maintenance and lower energy waste.
Using correct ferrule olive type and matching copper fittings or PEX compression hardware helps avoid galvanic corrosion and thermal fatigue. This method extends service life and keeps HVAC and plumbing systems running efficiently.
Female Compression Fitting Basics
A female compression fitting connects and seals a pipe or tube end when a nut compresses the ferrule olive against the fitting body. This design enables tight connections without soldering, making it common in plumbing and HVAC. Unions and adapters allow quick disassembly for service or instrument changes.
Female Compression Fitting Definition And Configurations
A common setup uses a female compression nut, a ferrule olive, and the fitting body. The nut threads onto the fitting body and compresses the ferrule to grip the tube. Many systems use unions, straight fittings, or elbow bodies to adapt direction and access during maintenance.
Choosing Compatible Materials
Copper and brass are often selected for refrigerant fittings and hot-water lines due to their ability to tolerate thermal cycles and resist deformation. Stainless steel works well in high-pressure or corrosive environments. PVC and PEX commonly serve condensate and domestic water runs, but they require proper inserts or specific ferrules for secure joints.
Where Female Compression Fittings Are Commonly Used
In standard plumbing work, female compression fittings link stops, valves, and supply lines without solder. For HVAC systems, technicians use them on refrigerant fittings between compressor, condenser, and evaporator where service access is critical. Gas lines and instrumentation often use compression parts for leak-tight, serviceable connections.
How Female Compression Fittings Compare With Male Fittings And Adapters
Female compression fittings receive a male end and form the receiving thread, while a 3 8 Male Compression Fitting provides that mating male component for tubing or ports. A 3/8 Valve Adapter allows technicians interface service valves and gauges to the system. Using correctly matched materials limits galvanic corrosion and keeps joints reliable under pressure and thermal change.
| Component | Material Choice | Typical Use | Service Reminder |
|---|---|---|---|
| Compression nut | Brass | Plumbing feeds and shutoff connections | Do not reuse if damaged or rounded |
| Compression ferrule | Brass and stainless options | Forms a seal on copper, brass, and some PEX | Generally replaced after being compressed |
| Main fitting body | Machined brass or stainless | Instrumentation and HVAC refrigerant fittings | Match material to refrigerant and pressure rating |
| 3 8 male compression adapter | Copper and brass | Mating for female ports, small-diameter lines | Check thread and seat compatibility |
| 3/8 valve adaptor | Brass | Service-gauge interfaces and manifold hoses | Use correct seals for refrigerant service |
| Installation Parts Supply source | Multiple materials | Source for matched kits and replacements | Choose compatible ferrules and nuts for longer service life |
Fitting Types, Sizes, And Adapters For HVAC And Plumbing Work
This part explains the various fitting types, sizes, and adapters essential for plumbing and HVAC projects. Installers use couplings, elbows, unions, and adapters to manage line routing, component isolation, and service access. Selecting the proper parts significantly impacts system performance, including pressure rating, temperature limits, and reliability.
Compression couplings and compression unions enable the creation of removable joints for maintenance and testing. Straight couplings are useful for straight connections, while compression unions are helpful for components that need to be disconnected without disrupting the line. For small runs, a 3/8 Compression Coupling is often used in instrumentation and refrigeration applications.
Adapters and elbows make it easier to handle tubing routing around obstacles and for connecting different types of fittings. A 3 8 Male Compression Fitting can connect to a female port or adapter, facilitating the integration of service valves and gauges. Installation Parts Supply catalogs offer a wide range of these components, ensuring quick access on job sites.
Selecting the correct size is essential, depending on the tube’s outside diameter and the ferrule and nut set. Ensure that the female compression fitting size matches the tube OD to prevent leaks. For 3/8″ applications, verify ferrule compatibility and torque specifications. Also check the system’s maximum pressure and temperature ratings before making a final selection.
Specialty parts such as the Max Adaptor and 3/8 Valve Adapter are made for connecting gauges, service ports, and small refrigerant lines. These adapters make easier the process of charging and diagnostics in HVAC systems. In compact HVAC systems, a 3/8 Valve Adapter is commonly used to link manifold hoses to service valves on compact systems.
Material choice balances between durability and corrosion resistance. Stainless steel offers durability and corrosion resistance, making it suitable for harsh environments. Copper and brass suit refrigerant circuits and heat transfer lines due to their balance of machinability and corrosion protection. PVC and PEX are suitable for low-pressure condensate and water lines but not for high-pressure refrigerant service.
The environmental impact of fittings is influenced by leak prevention and recyclability. Correctly installed metal fittings help reduce refrigerant emissions and can be recycled at the end of their life. Sourcing reliable parts from reputable distributors reduces failures and minimizes long-term environmental risk.
The table below helps compare between common options by application, pressure, temperature, and reusability.
| Fitting Style | Primary Application | Approximate Max Pressure | Typical Temperature Range | Reuse Potential |
|---|---|---|---|---|
| Brass compression coupling | Instrumentation, small water lines, refrigerant | May reach 3,000 psi depending on rating | Typical range from -65°F to 250°F | Limited; reusable if ferrule intact |
| Brass or stainless compression union | Disconnect points for maintenance | Up to about 2,500 psi | Typical range from -65°F to 300°F | High; designed for disconnects |
| 3/8-inch compression coupling | Refrigerant lines, instrumentation, small plumbing runs | Pressure rating must be verified | Check material spec for HVAC use | Moderate, though often replaced during service |
| 3 8 Male Compression Fitting | Interface for valves, gauges, and small lines | Depends on refrigerant-rated brass or stainless construction | Appropriate for typical HVAC temperature cycles | Can be reused if threads and seat remain sound |
| Specialty Max Adaptor | Special service coupling for gauges and valves | Designed for higher service-tool demands | Meets HVAC temperature cycles | Reusable and made for repeated service |
| PVC/PEX fittings | Condensate drains and low-pressure water service | Low rating and unsuitable for refrigerant | Commonly around 32°F to 140°F | Sometimes reusable, but UV can reduce life |
When ordering, check Installation Parts Supply or other reputable distributors for part numbers, material options, and pressure ratings. Ensure that the chosen 3/8 Valve Adapter or Max Adaptor matches both the tubing OD and the service fitting type to avoid mismatches on site.
How To Install And Maintain Compression Fittings
Correct compression fitting installation begins with clean, square pipe ends and the right parts. When working with HVAC refrigerant lines, use copper and brass. For low-pressure condensate or chilled water, PVC or PEX is best. Always check manufacturer specs and ASME B31.5 to minimize energy loss and leaks.
How compression fittings are installed
1. First, cut and deburr the tube to a square face. 2. Next, slide the nut and ferrule onto the pipe in that order. 3. When using soft plastic tubing, insert pipe inserts to keep the tube round before assembly. 4. Start by hand-tightening the nut, then use the two-wrench technique to finish the joint.
Useful installation tools and methods
Work with two wrenches to hold the fitting body and turn the nut to prevent tube twist. Observe torque recommendations from the fitting maker or Installation Parts Supply when available. Standard practice is to snug by hand, then add a limited number of wrench turns.
Where pipe inserts should be used
Pipe inserts are commonly required for soft plastic tubing like PEX or thin-wall PVC to prevent ovalization and ensure a leak-free seal. Do not install inserts in solid copper or thick-walled metal tubing, where inserts can interfere with proper ferrule compression.
Common errors and ferrule removal
Avoid under-tightening and over-tightening. Loose fittings leak; over-tightening deforms the ferrule and can make ferrule removal difficult. Compression ferrules are commonly not reused; plan to replace them when disassembling a joint.
How to remove a ferrule
First shut off the supply and relieve pressure. Secure the fitting body with one wrench while loosening the nut with a second. Remove the compression nut and pull out the ferrule. If the ferrule is stuck, apply penetrating oil, use a ferrule puller, or carefully cut the ferrule off without nicking the pipe.
3/8 Valve Adapter installation
For small lines like a 3/8″ valve connection, prepare the tubing the same way and follow the two-wrench technique. Several steps for installing a 3/8 Valve Adapter mirror larger fittings but require careful attention to torque guidance to avoid crushing the tube or the adapter threads.
Inspection and maintenance
Once the system is pressurized, inspect joints for weeps and tighten slightly if needed. Schedule routine inspections for corrosion and thermal fatigue, specially on refrigerant circuits. Avoid installing compression connections where vibration will loosen them over time.
| Process Step | Action | Installer Tip |
|---|---|---|
| Prepare | Cut square, deburr, clean pipe | Use a quality tubing cutter and deburring tool |
| Component Assembly | Place nut and ferrule in order before fitting assembly | Use pipe inserts on PEX/PVC to retain shape |
| Tighten | Snug by hand before using two wrenches | Follow torque guidance from manufacturer |
| Test | Pressurize and check for leaks | Watch for slow weeps; re-torque slightly if safe |
| Ongoing Service | Check routinely and change ferrules when joints are opened | Keep replacement parts from Installation Parts Supply nearby |
Closing Notes
Using the correct compression fitting matters for plumbing and HVAC work. The selected material, whether brass, copper, stainless steel, PVC, or PEX, must suit the service type. This ensures reliability and extends system life. Well-matched parts and sound installation help cut energy losses and refrigerant leaks, preserving performance and environmental health.
Compression fittings create a leak-free, solder-free solution. They are made up of a nut, ferrule, and body. To create a reliable seal, follow these steps: square-cut and deburr the tubing, use the two-wrench technique, and replace ferrules when reused. These steps support long-lasting, leak-tight connections in various applications, from copper piping to instrumentation.
For specific needs, such as 3/8″ lines, 3/8 Compression Coupling, or 3/8 valve adapters, be sure to match size and pressure ratings to the task. Quality components from trusted suppliers are key. Installation Parts Supply resources can assist in finding compatible fittings and adapters. Regular inspections and proper selection maintain system efficiency and compliance.
In summary, dedicating time to material selection and correct assembly is essential. That helps create durable, leak-free connections. It supports optimal performance, fewer repairs, and less environmental harm.
